SUBMERSIBLE MOTORS (WATER COOLED) OSWAL motor Stator wound with Polly wrapped copper wires, which are easily rewind able, Water lubricated & water-cooled. World class designed excellent performance thrust plate are used of S.S. / Carbon that can withstand thrust loads with minimum wear & tear more over it also creates a wedge of water between shoe and the disc so life cycle of thrust plate is increased. Mounting dimension of 4" pumps sets are as per NEMA / Indian standard.

OSWAL Regenerative self priming monoblock pumpset are powered by a totally enclosed fan cooled, AC induction motor, complete absence of suction trouble, suitable for long hours duty. Motor stator is made of low watt loss steel laminations assembled under pressure with rigidly in the frame. Well-balanced rotor ensures vibration and noise free operations. The varnish impregnated windings made of enameled copper wire offer excellent resistance power. Shaft made out of best quality steel, precision ground of ample size, which helps to transmitting the rated Horsepower. All single-phase versions up to 1.0 HP are incorporated with Thermal Over load protector. Application of Regenerative self priming monoblock pumpset is in Hospitals, Water circulation systems, Water supply systems of Gardening, Nurseries, Domestic water supply, Multi-storey Building & Industries.

Application in : • Water supply in Houses, Instltutes & Hospitals • Hydro circulation systems. • Watar for Gardening & Nurseries. • Water supply in Multi-storey Buildings. • Usage in Ultra-filtration system. Specification : Power Range 0.5 HP. & 1.1 HP Version 220-240V, 50 Hz, A.C-1 Ph. Permanent Split Capacitor (PSC) Incorporated with Thermal Overload Protector. Speed 2880 rpm. Duty S1 (Continuous) Degree of Protection IP 54 Insulation Class B Discharge range 580 - 1620 lph Head upto 12 - 40 mtrs. Suction lift upto 8 ft. Suction x delivery size 25 x 25

Salient Feature: High efficiency low power consumption. Complete absence of suction trouble. Maintenance free operation due to water Lubricated bearings. Vibration free & Noiseless operation. World class pumps design gives higher discharge.

Features A precision manufactured motor is achieved utilizing a laminated sheet steel production process combined with the highest standard of quality control. The drive shaft and rotor assembly is heat - treated and the stator and wiring impregnated with varnish and then heat dried in an industrial oven. This ensures a 100% quality manufactured motor with stable characteristics and a high efficiency. Standard accessories include: VCT cable with an epoxy resin sealed water - resistant cable base, AC thermal motor protector, dual mechanical seal and lip seal design.

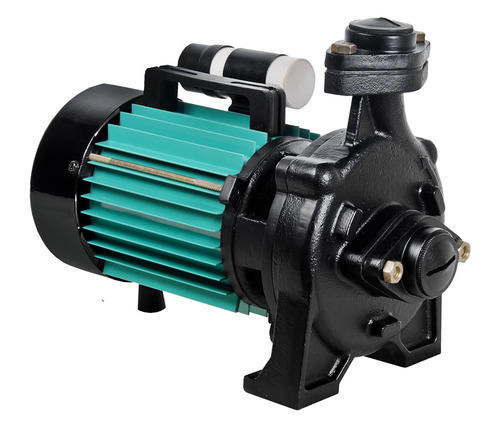

Salient Features of OSWAL Centrifugal Monoblock Pumpset: High operating efficiency resulting in lower power consumption, Good suction lift characteristics, Dynamically balanced rotating parts including rotor & impeller, Balanced and rigid construction, High working pressure & Designed for wide voltage fluctuations. CENTRIFUGAL MONOBLOCK PUMPS - 2880 RPM (Single & Three Phase)
